Galvanized Steel Frame Fiberglass Duct Rodder For Locating The Duct Block

Galvanized Steel Frame Fiberglass Duct Rodder For Locating The Duct Block
Galvanized Steel Frame Fiberglass Duct Rodder For Locating The Duct Block Galvanized Steel Frame Fiberglass Duct Rodder For Locating The Duct Block

Large Image :  Galvanized Steel Frame Fiberglass Duct Rodder For Locating The Duct Block

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 7 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Detailed Product Description
Certificaiton: ISO Technique: Pultrusion
Color: Red, Blue, Yellow,etc Product Name: Duct Rod
Packing: Wrapped Put In Carton Applying: Cable Pulling
High Light:

electrical wire pulling tools

,

stringing pulling tools

Galvanized Steel Frame Electrical Cable Pulling Tools Push Pull Duct Rod



Fiberglass duct rod or duct rodders and commonly called python rod by its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables, wires inside the duct , also it can be used to locate the duct block or damage portion identifications. its has high safety aspects to use underground applicartions because of its non conductivity of electricity, sets a major safety to site workers .

Talk about the rod frame

Snake Duct rod's frame is a feature of the Hunter systems.it has some special points to know:

1) a larger footprint for stability;

2) steel brake handles that will last forever;

3) dual rod out - feeding positions and wheels inside the frame width.

4) two smallest sizes feature frames with the feedout built into the handle.

All frames can be laid down on either side. These are just some of the design features that will make every unit more usable and friendly for the end user.

Duct Push Rodder Information

Galvanized Steel Frame Electrical Cable Pulling Tools Push Pull Duct Rod

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

Our Service

1 Well trained sales team service for you.
2 Small MOQ, usually sample is available.
3 Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4 Top quality: we have professional QC team to control the quality.
5 Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity.
6 We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.

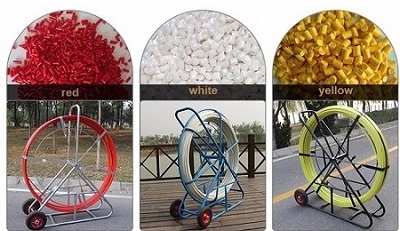

Fibergalss Raw Material

Galvanized Steel Frame Fiberglass Duct Rodder For Locating The Duct Block 0

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

Other Electrical Cable Pulling Tools:

Galvanized Steel Frame Fiberglass Duct Rodder For Locating The Duct Block 1
