160KN Manual Hydraulic Crimping Tools YQK-300 U Type Cable Lug For Terminals

160KN Manual Hydraulic Crimping Tools YQK-300 U Type Cable Lug For Terminals
160KN Manual Hydraulic Crimping Tools YQK-300 U Type Cable Lug For Terminals 160KN Manual Hydraulic Crimping Tools YQK-300 U Type Cable Lug For Terminals

Large Image :  160KN Manual Hydraulic Crimping Tools YQK-300 U Type Cable Lug For Terminals

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: YQK300
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiable
Packaging Details: Plastic
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 pcs / month
Detailed Product Description
Model: YQK300 Output: 160 KN
Crimping Range(mm2): 300 Stroke: 22 Mm
Weight: 8 Kg Packing: Plastic Bag
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

YQK -300 160KN Manual Hydraulic Crimping Tools Cable Lug For Terminals



Characteristics

YQK -300 160KN Manual Hydraulic Crimping Tools Cable Lug For Terminals

1. Compression mould can be replaced, quick and safe operation;

2. Compression configuration:16,25,35,50,70,95,120,150,185,240,300

3. Press tools is suitable for DIN.AWG.JIS.

4. There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

5. Only one person can work.

6. Pump is connected to the tools, it can turn 180 degree when pressed on the head.

Feature

YQK -300 160KN Manual Hydraulic Crimping Tools Cable Lug For Terminals

1. Simplified on-off control for speed operation

2. the comfortable ergonomic cushioned handles offer a soft tight grip that wont slip

3. Easy to use on-off control for fast operation.

4. Great for battery welding cbale power wires and electrical cable etc.

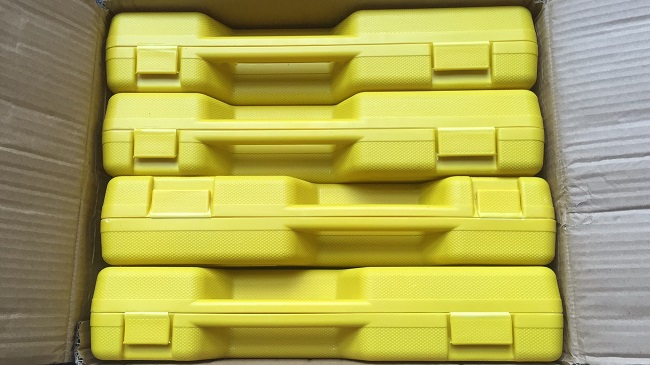

5. One pc in one plastic box ,fore plastic box in one paper box.

160KN Manual Hydraulic Crimping Tools YQK-300 U Type Cable Lug For Terminals 0

Technical Data of Slap-up manual hydraulic press crimping tool used crimping

Product No. Model Type Output (KN) Crimping Range(mm2) Working Stroke(mm) Packing Term Oil Capacity (cc) Weight(kg)
80079 YQK-300 160 300 22 plastic box 145 8.0

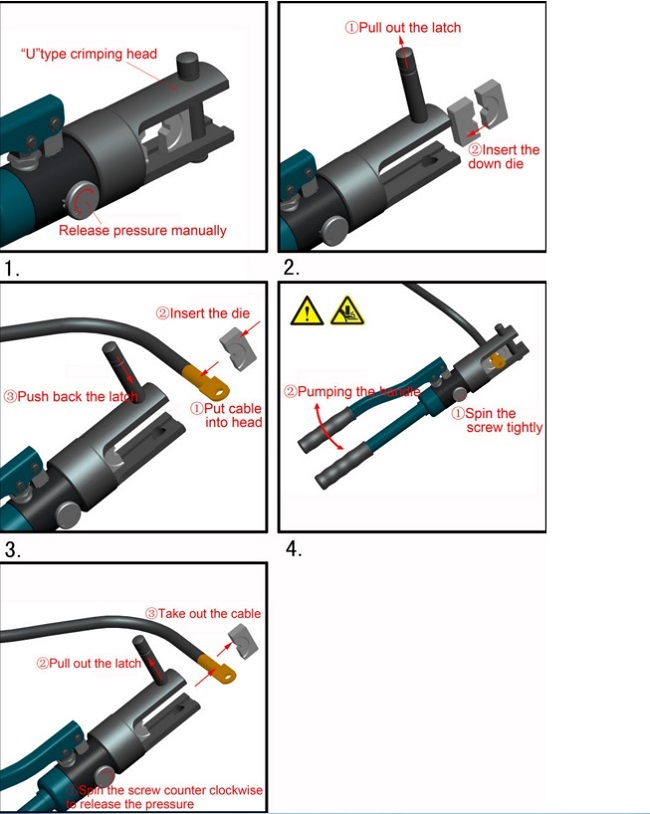

1) 'U'type crimping head, releasing pressure manually.

2) Pul out the latch, inserst the down die

3) Put cable into the head,Inset the die, Push back the latch

4) Spin the screw tightly,pumping the handle.

5) Spin the screw counter clockwise,to release the pressure,take out the cable, pull out the latch.

160KN Manual Hydraulic Crimping Tools YQK-300 U Type Cable Lug For Terminals 1
