Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction

Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction
Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction

Large Image :  Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM5Q
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Model: JJM5Q Using: Power Site
Working Force: 50 KN Name: Gasoline Winch
Type: Cable Puller Winch Apply: Pulling Cable
High Light:

portable capstan winch

,

gas powered winch

5 Ton Cable Winch Puller Witn Honda/YAMAHA Engine For Power Construction



Technical Data 5 Ton Cable Winch Puller Witn Honda/YAMAHA Engine For Power Construction

Model Pull Force(KN) Speed(m/min) Engine Weight(kg)
JJM5Q 50 5 YAMAHA/Honda 100
30 11
No lifting 3.2

5 Ton Cable Winch Puller Witn Honda/YAMAHA Engine For Power Construction:

Small power yamaha engine;low vibration,low noise;Easy to operate and high safty ;Precise Machining Technique;Long Life of the Machine;Delicate and Beautiful Appearance Design;Broader Applicable Scope;Good quality and less malfunction.

Features:5 Ton Cable Winch Puller Witn Honda/YAMAHA Engine For Power Construction

1. high efficiency.

It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

2. safe and reliable.

The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

3. widely used.

According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes

4. small size & compact structure.

The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

5. light weight.

For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

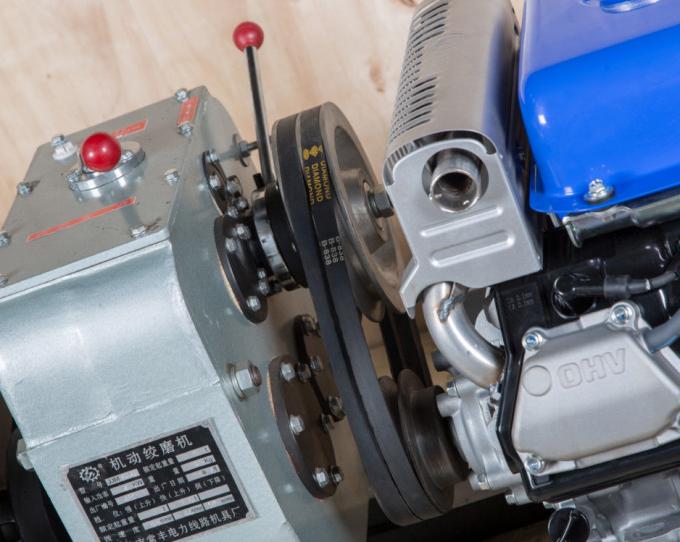

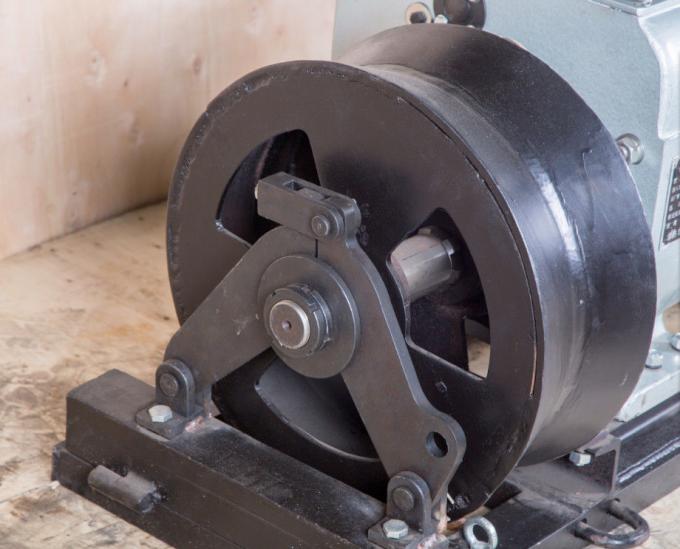

Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction 0Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction 1

Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction 2Gasoline Cable Winch Puller Witn Honda / YAMAHA Engine For Power Construction 3
