OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board

OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board
OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board

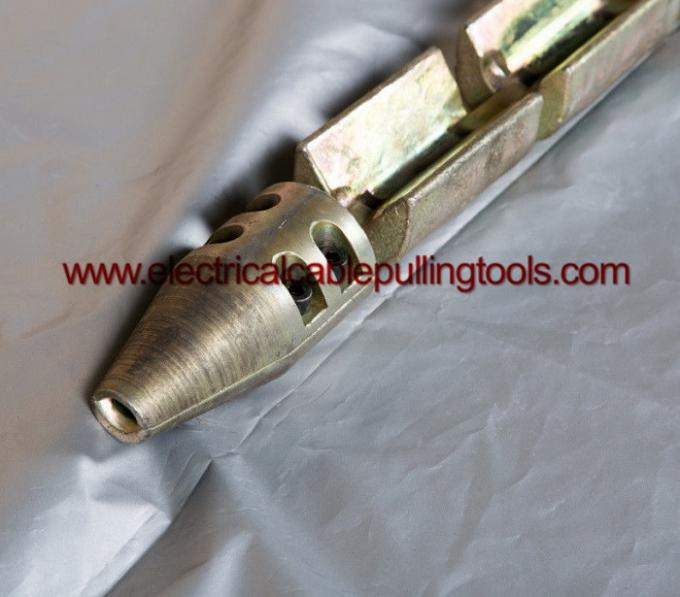

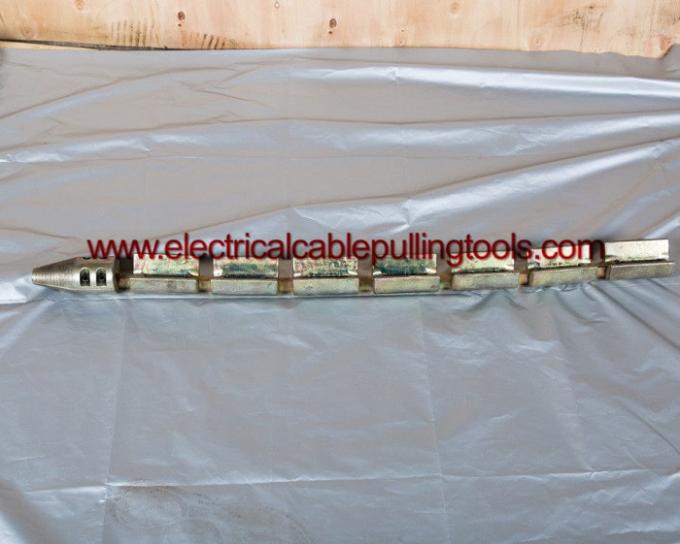

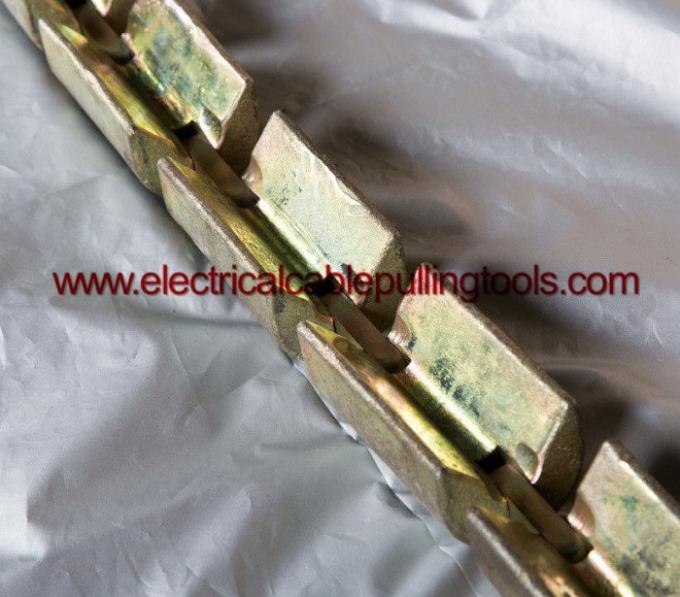

Large Image :  OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: ZB
Payment & Shipping Terms:
Minimum Order Quantity: 2SETS
Price: GET THE LATEST
Packaging Details: STD EXPORTED PACKING
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000SETS/MONTH
Detailed Product Description
MODEL: ZB NAME: ANTI-TWIST RUNNING BOARD
ANTI TWIST MOMENT: 32N.m OPGW DIAMETER: 8~23MM
SITE: OPGW CONSTRUCTION WEIGHT: 2X12,5KG
High Light:

wire pulling tools

,

fiber optics tools and equipments

Anti Twist Running Board OPGW Stringing Tools For Passing 60mm Pulley



Our anti twist tension stringing tool comes with two running boards. It is applicable to the construction of optical power ground wire abbreviated as OPGW. The gap of anti twist running board is 2m. This product is directly screwed on the OPGW. It can pass through the sheave groove with the diameter of 660mm.



Technical Parameters

Item number Model Applicable OPGW diameter mm) Anti-twist moment (N.m) Weight (kg)
20118 ZB1 φ11.5~16 32 2×12.5
20118a ZB2 Φ16~23
20118b ZB3 Φ8~12



OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board 0OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board 1

OPGW Construction Optical Fiber Cable Tools 8-23 Mm Dia Anti Twist Running Board 2
