SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block

SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block
SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block

Large Image :  SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHT
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/WEEK
Detailed Product Description
MODEL: SHT RATED LOAD: 2T
WHEEL: CAST STEEL SHEAVE TYPE: STRINGING BLOCK
WEIGHT: 4.5KG DIAMTER: 165MM
High Light:

transmission line tool

,

transmission tools and equipment

SHT Model 20KN Grounding Wire Stringing Block Steel Sheave Stringing Block



Single Sheave Stringing Block

Item number

Model

Applicable stranded wire

Rated load (kN)

Weight (kg)

Remark

10331 SHT-120×30 GJ35 5 2.2



Cast steel sheave

10332 SHT-150×32 GJ70 10 3.6
10333 SHT-165×50 GJ120 20 4.5
10334 SHT-200×60 GJ150 20 5.2
10341 SHTN-120×30 GJ35 5 1.6



Nylon sheave

10342 SHTN-150×32 GJ70 10 2.4
10343 SHTN-165×50 GJ120 20 3.3
10344 SHTN-200×60 GJ150 20

3.8

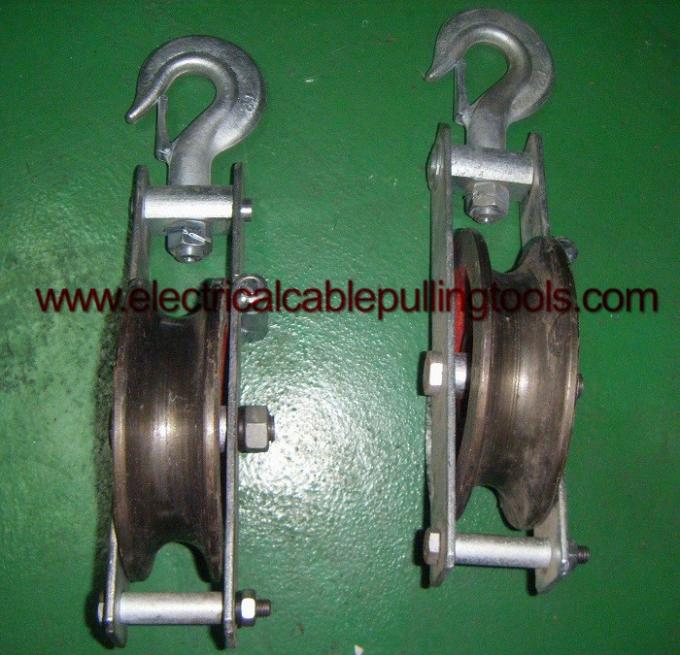

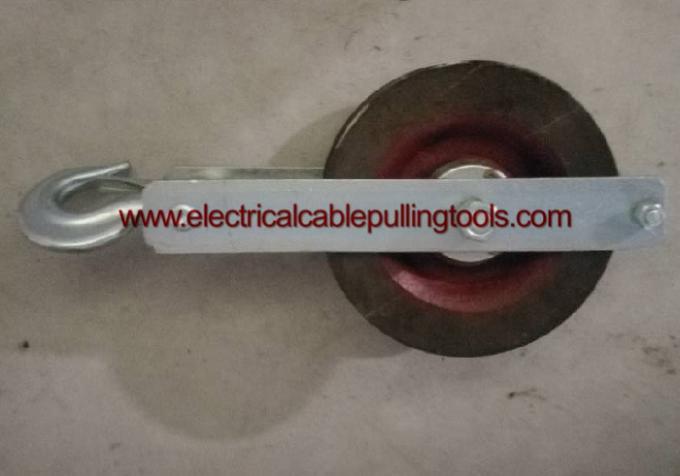

Cast Steel Sheave Stringing Block:

1. Donghuan Brand

2. 2T rated load

3. Suit to stranded wire GJ120

4. Stringing pulley blocks in the transmission line site

5. Mode SHT165 diameter.

6. Side Open tybe can be



Grounding wire stringing block, earth wire stringing block:

it is apply to pull steel strand.

SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block 0SHT Grounding Wire Stringing Block / 20KN Cast Steel Sheave Stringing Block 1
