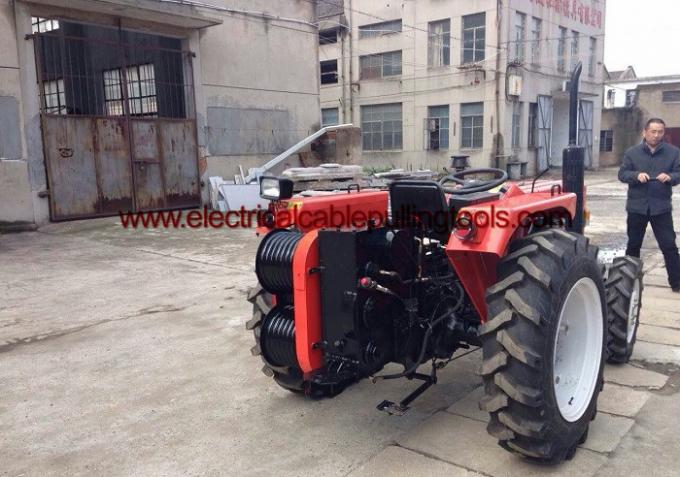

Tractor Cable Winch Puller Model 304 40KN Two Wheel Tractor Pulling Machine

Tractor Cable Winch Puller Model 304 40KN Two Wheel Tractor Pulling Machine
Tractor Cable Winch Puller Model 304 40KN Two Wheel Tractor Pulling Machine Tractor Cable Winch Puller Model 304 40KN Two Wheel Tractor Pulling Machine

Large Image :  Tractor Cable Winch Puller Model 304 40KN Two Wheel Tractor Pulling Machine

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: 280
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Std exported packing
Delivery Time: 3 -5 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/month
Detailed Product Description
Model: SX4-V1 Suitable For: Power Line, Tower Line, Traction Line
Tractor Type: 304 Four-wheel Drive Weight: 1740kg
Apply: Pulling Traction Force: 40KN
High Light:

gasoline powered winch

,

gas powered winch

Tractor Puller Model 304 40KN Two Wheel Tractor Winch / Basic Construction Tools



Tractor-drawn Winch

Item number

08126 Power 22KW Model SX4-V1
Gear reversalⅠ
Traction force(KN) 40 30 20 -
Traction speed(M/MIN) 12 21 38 11
bottom of groove diameter Φ300mm
Number of groove 6
(KG)Weight 1740kg
 outline size 2900x14000x1440mm



Model 304 Tractor Puller Winch for retractable traverse pulling hoisting in power line construction

Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.

Explain:It is made of four-wheel drive 304 type tractors. Can use a two-wheel drive 300 tractor(Item No. 08127)

Tractor Pulling Machine:
1, the power line construction in the retractable wire.
2, the traction of the whole tower erection, also lifting heavy objects.
3, rear can hang trailer transport tools

Application:

Refit from 250304 tractor, more speed change files position.

Be used for slinging or pulling guide line, earth wireless.

To have three traction drum, two of them is slot big diameter double drum that used in

pulling no-twist wire rope,,protect the twist wire rope from damaging effectively, another one is V slot, mainly used for pulling ordinary twist wire rope or nylon line.

Oneself has run part, it also can equip box for transport cement rod or some little tools. The power is big, strong for cross-country.
